- ATESS HPS 30KW HYBRID INVERTER
- hPS30
KERNEL PARAMERERS
- Input Voltage: 480V-800V DC
- Output Voltage:190-240VAC
- Output Current: 72-91A
- Output Frequency: 50/60HZ
- Size: 700/1660/600mm
- MPPT Input Voltage Range: 480V-800V DC
- Cooling: Forced-air
- Relative humidity: 0-95% non-condensing

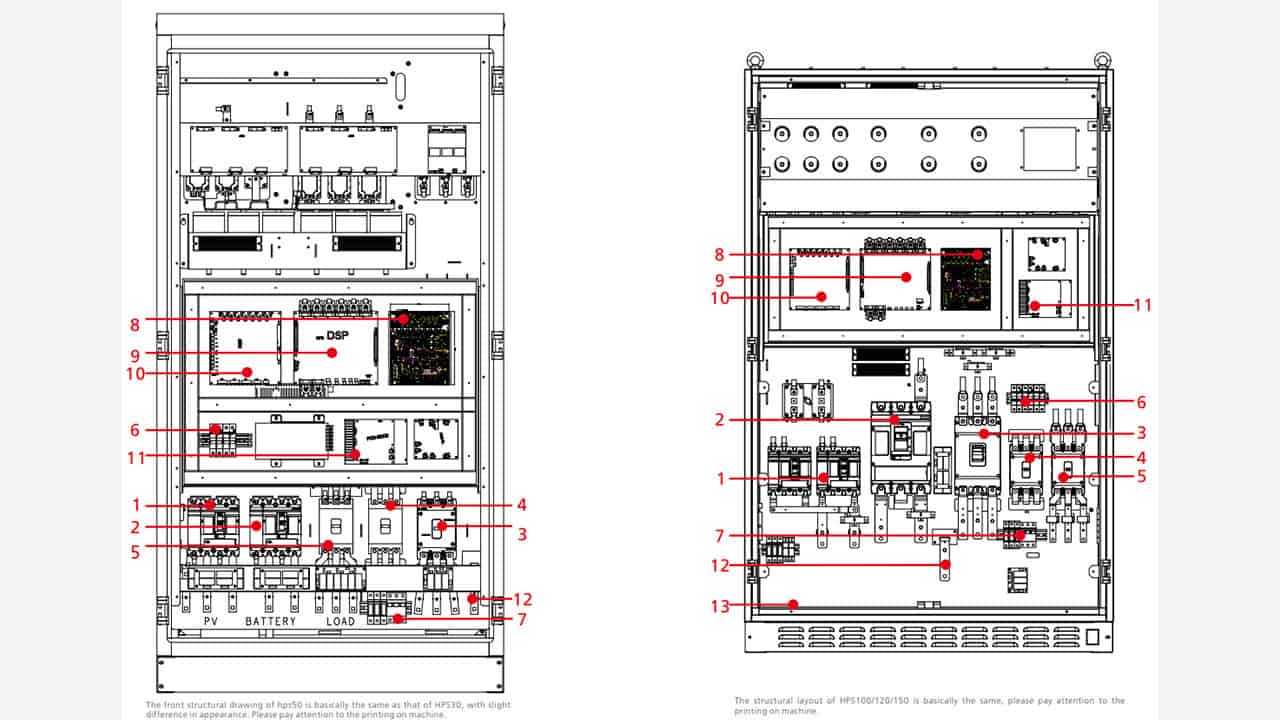

BASIC SYSTEM ARCHITECTURE
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system – Generator or Utility – PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.
KEY PRODUCT FEATURES
- Wide input voltage range.
- Compatible with lead-acid or lithium-ion batteries or other battery.
- Fashion apperance, light weight, smart operation.
- Natural cooling, low noise.
- IP65 , wall mounted design, saving space. Touch screen LCD.
- Compatible anti counter flow function. Battery reverse connect protection.
- Intelligent energy management system for home.
- Power dispatching and demand side response management.
- Distributed virtual power station management.
TECHNICAL PARAMETERS
| Mdoel | HPS30kVA | HPS50kVA | HPS100kVA | HPS120kVA | HPS150kVA |
|---|---|---|---|---|---|
| AC (Grid-connected) | |||||
| Apparent power | 33kVA | 55kVA | 110kVA | 132kVA | 165kVA |
| Rated power | 30kW | 50kW | 100kW | 120kW | 150kW |
| Rated voltage | 400V | ||||
| Rated current | 43A | 72A | 144A | 173A | 217A |
| Voltage range | 360V – 440V | ||||
| Rated frequency | 50/60Hz | ||||
| Frequency range | 45~55/55~65Hz | ||||
| THDI | <3% | ||||
| PF | 0.8lagging~0.8leading | ||||
| AC connection | 3/N/PE | ||||
| AC input | 60kVA | 100kVA | 200kVA | 240kVA | 240kVA |
| AC(Off-grid) | |||||
| Apparent power | 33kVA | 55kVA | 110kVA | 132kVA | 165kVA |
| Rated power | 30kW | 50kW | 100kW | 120kW | 150kW |
| Rated voltage | 400V | ||||
| Rated current | 43A | 72A | 144A | 173A | 217A |
| THDU | ≤2%linear | ||||
| Rated frequency | 50/60Hz | ||||
| Overload capability | 110%-10 mins 120%-1 min | ||||
| DC (Battery and PV) | |||||
| Max PV open-circuit voltage | 1000V DC | ||||
| MAX PV power | 45kWp | 75kWp | 150kWp | 180kWp | 225kWp |
| PV MPPT voltage range | 480V-800V DC | ||||
| Battery voltage range at Max.charge power | 450V-600V | 500V-600V | 500V-600V | 517V-600V | 500V-600V |
| Battery voltage range | 352-600V | ||||
| Max.charge power | 45kw | 75kw | 150kw | 180kw | 225kw |
| Max.discharge power | 33kW | 55kW | 110kW | 132kW | 165kW |
| Max.charge current | 100A | 150A | 300A | 350A | 450A |
| Max.discharge current | 93A | 156A | 313A | 374A | 467A |
| General Information | |||||
| Protection degree | IP20 | ||||
| Noise emission | <65dB(A)@1m | ||||
| Operating temperature | -25 °C~+55 °C | ||||
| Cooling | Forced-air | ||||
| Relative humidity | 0-95% non-condensing | ||||
| Maximum altitude | 6000m (derate over 3000m) | ||||
| Dimension (W/H/D) | 950/1860/750mm | 950/1860/750mm | 1200/1900/800mm | 1200/1900/800mm | 1200/1900/800mm |
| Weight | 505kg | 610kg | 948kg | 1025kg | 1230kg |
| Build-in transformer | Yes | ||||
| Transfer between on/off grid | Automatic≤10ms | ||||
| Standby consumption | <30w | ||||
| Communication | |||||
| Display | Touch screen | ||||
| Communication | RS485/CAN | ||||
| Certificate | |||||
| Certificate | CE , MEA , PEA , EN 61000-6-4:2007+A1:2011 , EN61000-6-2:2005 , EN62109-1:2010 , EN62109-2:2011 | ||||
