- 30~500KW SOLAR ENERGY STORAGE SYSTEM FULL SET | HyBRID | oN GRID | OFF GRID
- customized according to your needs
KERNEL PARAMERERS
- Application: Home,Commercial,Industrial,Other
- Battery Type: Lithium Battery/Li-ion Battery
- Inverter Type: Hybrid / On Grid / Off Grid
- Controller Type: MPPT
- Mounting Type: Ground Mounting/Roof Mounting
- PV Power: 30~500KW
- Output Frequency: 50HZ/60HZ
- Certificate: UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
- Solar Solution: Customized
- Battery Input Voltage(V): 250~850
cOMPONENTS AND PARTS

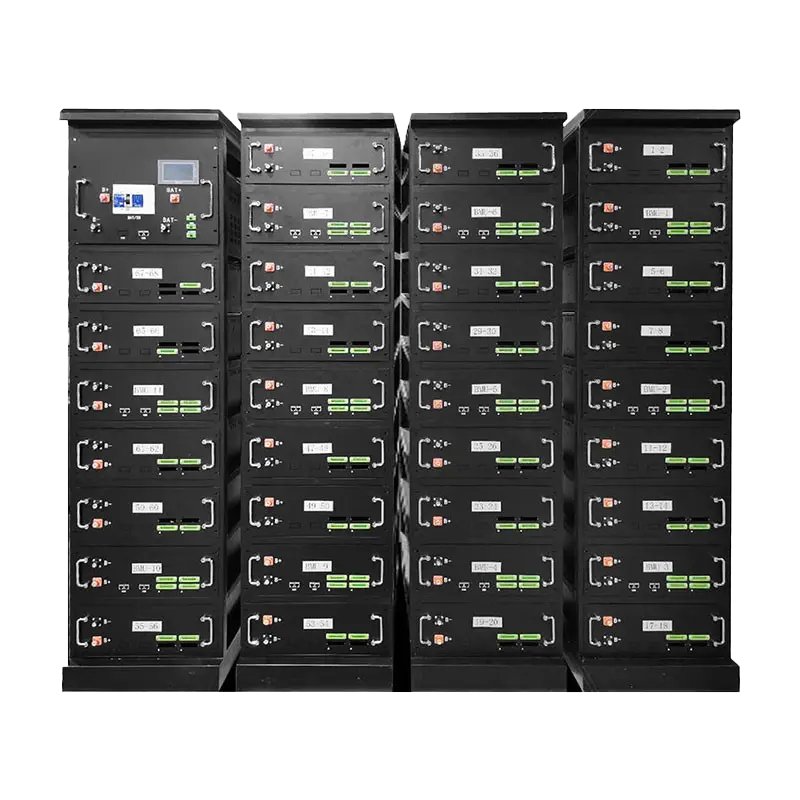

Battery
- Capacity: Customized
- Well-known Brand Grade A Cells
- With Bms Inside
- Grade A Cells
- 6000+ Cycle Time
- 10 Years Warranty
Solar inverter
- PV input voltage :250~850V
- AC output voltage ：400V （EU ）/480V （US ）
- 6 time periods for battery charging and discharging.
- Max. charging/discharging current of 240A
- Max.10pcs parallel
- DC couple and AC couple to retrofit existing solar system

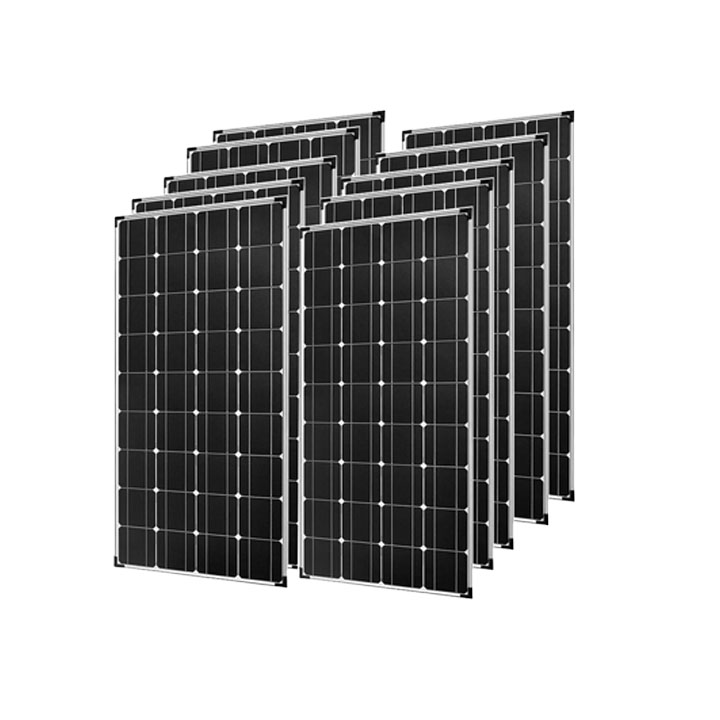

All Black Solar Panel
- 550W Mono Facial
- Half Cell All Black
- SIZE:2094 X 1134 X 35MM
- 25 Year Warranty
- MOQ:1 Pallet 36pcs/Pallet

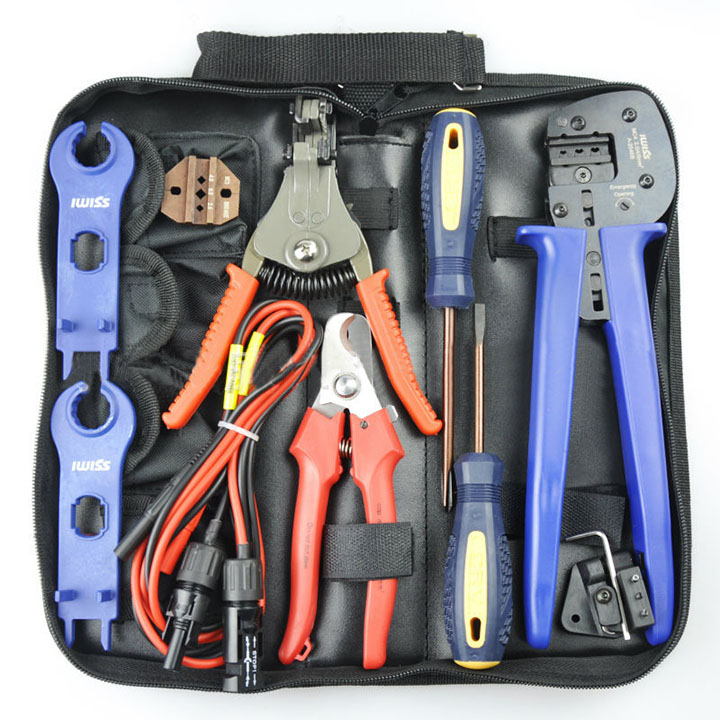

PV System Installation Tools
- Disassemble Tool
- MC3 MC4 Crimper
- Wire Cable Cutter & Stripper
- MC4 Connector Assembly

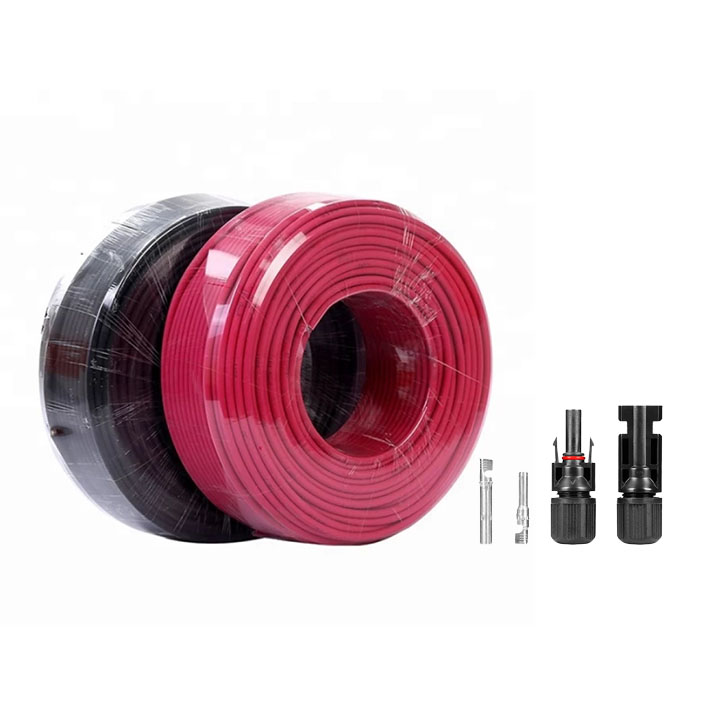

PV Cable&MC4 Connector
- AC Cable
- DC Switches
- AC Breaker
- AC/DC Combine Box
- PV Cable 4MM2 6MM2
- Rated Current: 30A
- Rated Voltage: 1500VDC

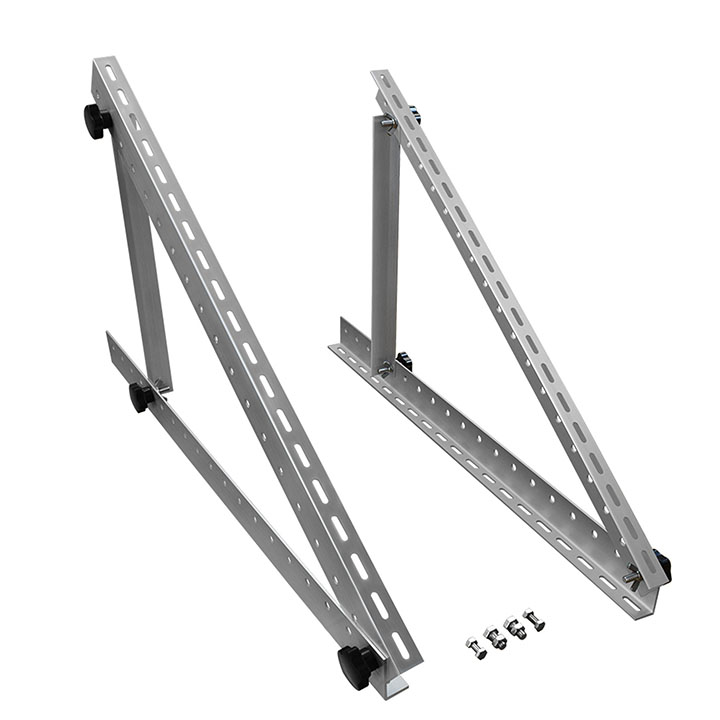

Mounting Structure
- Ground Solar Mounting System
- Residential Roof(Pitched Roof)
- Car Parking Solar Mounting System
- Vertical Wall Solar Mounting System
- Commercial Roof(Flat Roof&Workshop Roof)
- All Aluminum Structure Solar Mounting System
TECHNICAL PARAMETERS
30KW
- Half Cut Mono 550W Solar Panel: 55 Pieces
- PV Combiner Box: 5 Input 1 output 1Piece
- Inverter Rated Power: 30kw
- High Voltage LiFePo4 Battery : 30Kwh
- DC Cable 4mm2: 500 meter
- MC4 Connector: 20 Pairs
- Mounting System: Customized Product Based On Installation Roof/Ground
- PV Installation Tools: Wire Cable Cutter & Stripper, Disassembly Tool
50KW
- Half Cut Mono 550W Solar Panel: 91 Pieces
- PV Combiner Box: 7 Input 1 output 1Piece
- Inverter Rated Power: 50kw
- High Voltage LiFePo4 Battery : 50Kwh
- DC Cable 4mm2: 1000 meter
- MC4 Connector: 30 Pairs
- Mounting System: Customized Product Based On Installation Roof/Ground
- PV Installation Tools: Wire Cable Cutter & Stripper, Disassembly Tool
100KW
- Half Cut Mono 550W Solar Panel: 180 Pieces
- PV Combiner Box: 5 Input 1 output /3PCS 3 Input 1 output /1PCS
- Inverter Rated Power: 100kw
- High Voltage LiFePo4 Battery : 100Kwh
- DC Cable 4mm2: 1500 meter
- MC4 Connector: 90 Pairs
- Mounting System: Customized Product Based On Installation Roof/Ground
- PV Installation Tools: Wire Cable Cutter & Stripper, Disassembly Tool
120KW
- Half Cut Mono 550W Solar Panel: 216 Pieces
- PV Combiner Box: 6 Input 1 output /3PCS, 3 Input 1 output /1PCS
- Inverter Rated Power: 120kw
- High Voltage LiFePo4 Battery : 120Kwh
- DC Cable 4mm2: 1800 meter
- MC4 Connector: 100 Pairs
- Mounting System: Customized Product Based On Installation Roof/Ground
- PV Installation Tools: Wire Cable Cutter & Stripper, Disassembly Tool
150KW
- Half Cut Mono 550W Solar Panel: 264 Pieces
- PV Combiner Box: 8 Input 1 output /3PCS, 3 Input 1 output /1PCS
- Inverter Rated Power: 150kw
- High Voltage LiFePo4 Battery : 150Kwh
- DC Cable 4mm2: 2400 meter
- MC4 Connector: 120 Pairs
- Mounting System: Customized Product Based On Installation Roof/Ground
- PV Installation Tools: Wire Cable Cutter & Stripper, Disassembly Tool
200KW
- Half Cut Mono 550W Solar Panel: 360 Pieces
- PV Combiner Box: 5 Input 1 output /6PCS, 3 Input 1 output /2PCS
- Inverter Rated Power: 100kw/2PCS
- High Voltage LiFePo4 Battery : 200Kwh
- DC Cable 4mm2: 3000 meter
- MC4 Connector: 180 Pairs
- Mounting System: Customized Product Based On Installation Roof/Ground
- PV Installation Tools: Wire Cable Cutter & Stripper, Disassembly Tool
300KW
- Half Cut Mono 550W Solar Panel: 540 Pieces
- PV Combiner Box: 5 Input 1 output /9PCS, 3 Input 1 output /3PCS
- Inverter Rated Power: 100kw/3PCS
- High Voltage LiFePo4 Battery : 300Kwh
- DC Cable 4mm2: 4500 meter
- MC4 Connector: 270 Pairs
- Mounting System: Customized Product Based On Installation Roof/Ground
- PV Installation Tools: Wire Cable Cutter & Stripper, Disassembly Tool
400KW
- Half Cut Mono 550W Solar Panel: 720 Pieces
- PV Combiner Box: 5 Input 1 output /12PCS, 3 Input 1 output /4PCS
- Inverter Rated Power: 100/4PCS
- High Voltage LiFePo4 Battery : 400Kwh
- DC Cable 4mm2: 6000 meter
- MC4 Connector: 360 Pairs
- Mounting System: Customized Product Based On Installation Roof/Ground
- PV Installation Tools: Wire Cable Cutter & Stripper, Disassembly Tool
500KW
- Half Cut Mono 550W Solar Panel: 900 Pieces
- PV Combiner Box: 5 Input 1 output /15PCS, 3 Input 1 output /5PCS
- Inverter Rated Power: 100/5PCS
- High Voltage LiFePo4 Battery : 500Kwh
- DC Cable 4mm2: 7500 meter
- MC4 Connector: 450 Pairs
- Mounting System: Customized Product Based On Installation Roof/Ground
- PV Installation Tools: Wire Cable Cutter & Stripper, Disassembly Tool
